Manufacturer:Allen Bradley
Model Number:1746-OB16E
Module Type:Digital Output Module
Number Of Channels:16
Input Voltage:24 VDC
Output Voltage Range:10 – 50 VDC
On-State Voltage Drop:1.2 V
Off-State Output Leakage:1 MA
Load Capacity:1 MA
Backplane Current Rating:0.28 A
Continuous Current Per Output:0.25 A at 60°C
Continuous Current Per Module:4 A at 60°C
Isolation Voltage:{“Communication Circuits”:”500 VDC”,”Backplane”:”1500 VAC”}
Processor Compatibility:SLC 500
Enclosure:Open Type
Mounting:Chassis
Temperature Rating:0 – 60°C
Environmental Conditions:5 – 95%

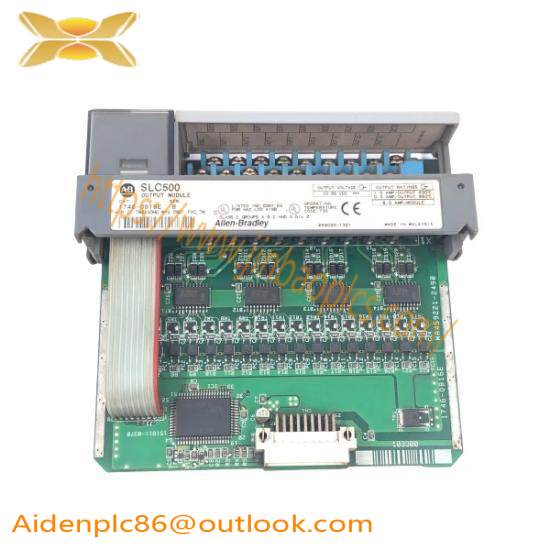

The AB 1746-OB16E is a robust and dependable digital output module designed specifically for industrial automation environments. With 16 channels, it provides extensive connectivity options, ensuring seamless integration with various control systems.
This module features an input voltage range of 24 VDC, making it compatible with a wide array of industrial power supplies. Its output voltage range from 10 to 50 VDC ensures compatibility with diverse loads and applications.
The on-state voltage drop of just 1.2 V and off-state output leakage of 1 mA contribute to its efficiency, minimizing energy loss and ensuring stable operation under varying load conditions.
Rated for continuous current per output of 0.25 A at 60°C and a total module current rating of 4 A at 60°C, this module is built to handle demanding industrial environments. It operates within a temperature range of 0 – 60°C, providing reliable performance even under extreme conditions.
Certified for communication circuit isolation up to 500 VDC and backplane isolation up to 1500 VAC, the AB 1746-OB16E ensures safe and reliable data transmission between modules and systems. It is fully compatible with SLC 500 processors, offering seamless integration with existing Allen Bradley control systems.
