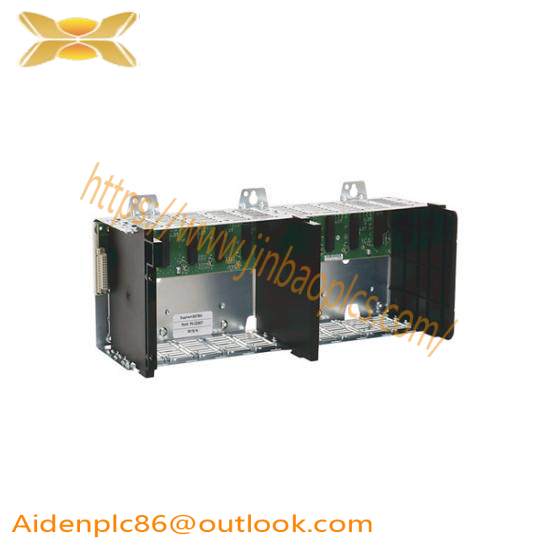

Allen-Bradley 1756-A10 Series A 10 Slot ControlLogix Chassis

Model Number:1756-A10/A

Manufacturer:Allen-Bradley

Series:ControlLogix

Slot Count:10

Mounting Type:Panel

Temperature Range:-20°C to 60°C

Enclosure Type:Open

Form Factor:Slot Type Chassis

Cooling Method:Convection

Length:5.8 inches

Width:15.9 inches

Height:6.8 inches

Backplane Current:5.1 VDC at 10 A, 24 VDC up to 2.88 A

Power Consumption:1.8 W

Power Dissipation:6.1 BTU/hr

Standard Approvals:GOST_R, KCC, MARINE-ABS, MARINE-BVS, MARINE-DNV, MARINE-GL, MARINE-KRS, MARINE-LR

    Engineered for reliability and performance, the Allen-Bradley 1756-A10 Series A 10 Slot ControlLogix Chassis is a cornerstone of modern industrial automation. Its open architecture facilitates easy integration with various field devices and control protocols, including Ethernet/IP and ControlNet, enhancing flexibility and scalability.

    The chassis is meticulously designed to accommodate up to ten slots for various input/output (I/O) modules, allowing users to configure their system precisely according to their specific application needs. Whether it’s discrete I/O, analog signals, or advanced motion control applications, this chassis provides the foundation for a robust and scalable automation solution.

    Featuring an IP20 enclosure rating, the chassis is protected against dust and light splashes, ensuring durability in challenging industrial environments. The robust design, combined with its efficient cooling through convection, ensures optimal performance even under demanding conditions.

    The Allen-Bradley 1756-A10 Series A 10 Slot ControlLogix Chassis is compatible with the entire range of Allen-Bradley ControlLogix I/O modules, offering comprehensive support for digital, diagnostic digital, analog, and specialty I/O functions. This compatibility ensures a seamless integration with other Allen-Bradley components, simplifying the setup and maintenance process.

    With its extensive feature set and modular design, the Allen-Bradley 1756-A10 Series A 10 Slot ControlLogix Chassis is an indispensable tool for industrial automation professionals seeking to enhance productivity, reduce downtime, and optimize manufacturing processes. It is tailored to meet the evolving demands of today’s dynamic industrial landscape, making it an ideal choice for businesses looking to future-proof their automation infrastructure.
