Input Voltage Range:10 VDC to 24 VDC
Input Current Range:0 to 20 mA
Signal Type:4-20 mA, 0-10 VDC
Accuracy:+/- 0.5%
Response Time:Less than 1 ms
Temperature Range:-40°C to +85°C
Power Consumption:Max 25 mW
Connectors:1 x 10-pin connector
Dimensions:101.6mm x 48.26mm x 76.2mm
Weight:Approx. 250g

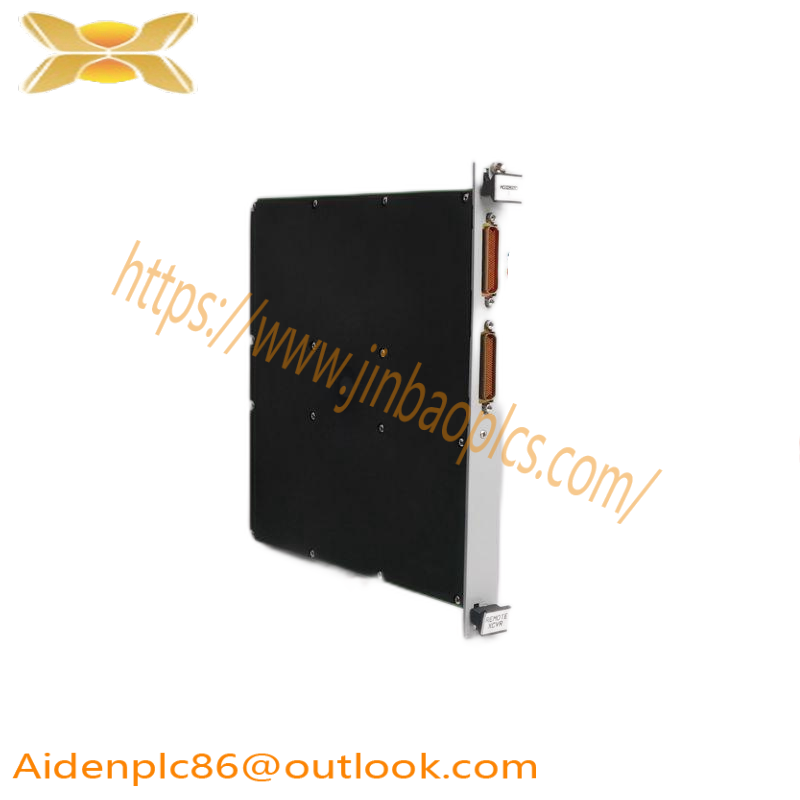

The WOODWARD 9905-969 Analog Input Module seamlessly integrates with Woodward PLC systems, providing a robust solution for real-time monitoring and control applications in demanding industrial environments.
Featuring a wide input range of -10V to +10V, this module ensures accurate signal acquisition from various sensors and devices. Its high-resolution 14-bit ADC guarantees precise data conversion.
With a sampling rate of 500Hz, the module captures dynamic changes quickly, essential for responsive control systems. It is designed to consume a maximum of 5W, ensuring efficient power usage.
Engineered to withstand extreme temperatures ranging from -40°C to +70°C, this module operates reliably in harsh industrial conditions, ensuring continuous operation without interruption.
The compact design, measuring 70mm x 70mm x 25mm, allows for easy panel mounting and integration. The module supports two analog inputs and two power supply connectors, offering flexibility in system configuration.
Ideal for applications requiring precise analog signal processing, the WOODWARD 9905-969 Analog Input Module enhances system accuracy, efficiency, and overall performance, making it a trusted choice for industrial automation.
